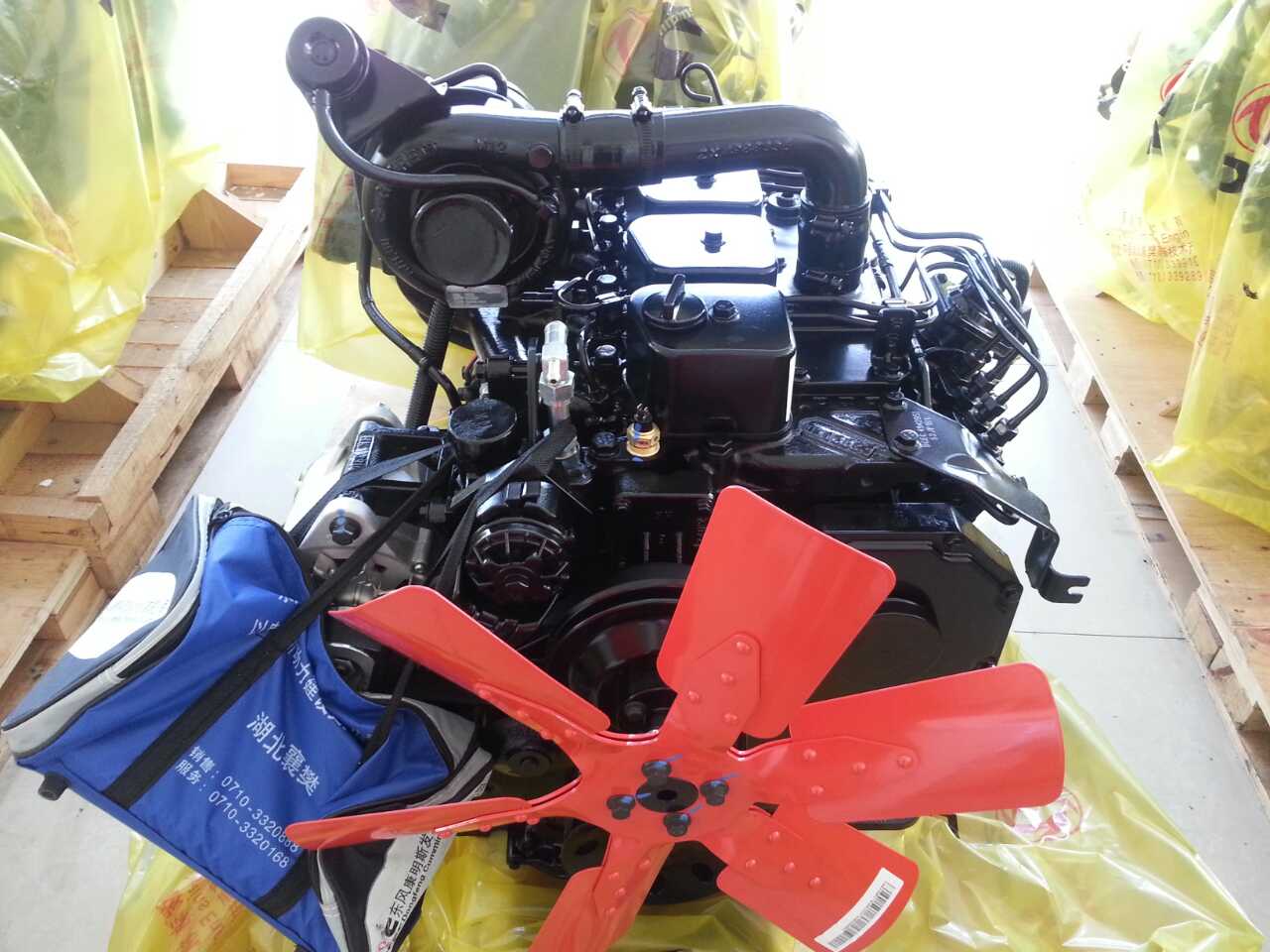

4BT3.9-C80
Feature of 4BT3.9-C80 Cummins Construction Engine:
■ Advanced Design and Excellent Manufacturing: Adapt to harsh working conditions, high strength, heavy duty operation.
■ Holset Exhaust Gas Bypass Valve: 4BT3.9-C80 engine with perfect low speed performance, more powerful.
■ Better Reliability: Integrated design, 40% parts less than other similar engines, greatly reduced the failure rate.
■ Special Design of Cylinder Liner: 4BT3.9-C80 engine with perfect geometric structure effectively prevent the oil leakage
- Description
- Power Options
Dongfeng Cummins Engine Co., Ltd. (hereinafter referred to as “Dongfeng Cummins” or “DCEC“) is located in Xiangyang City, Hubei Province, is the modern manufacture of heavy duty engine 50:50 Joint Venture shared by Dongfeng Automobile Limited and Cummins USA.
4BT3.9-C80 construction engine is produced by Dongfeng Cummins, the specifications of the 4BT3.9-C80 construction engine is as follows:
| Cummins 4BT3.9-C80 Construction Engine Specifications | |
| Engine Model | 4BT3.9-C80 |
| Rated Power | 60kW |
| Rated Speed | 2000RPM |
| Engine Type | 4 Cylinders, in Line |
| Bore*Stroke(mm) | 102 mm * 120 mm |
| Displacement | 3.9 L |
| Compression Ratio | 18:01 |
| Peak Torque | 330N.m @1500r/min |
| Fuel Consumption | 18.6 L/hr |
| Aspiration Type | Turbocharged |
| Cooling Method | Water Cooled |
| Start Type | 24V, Electric Start |
| Fuel System | Direct Injection Pump |
| Governor Method | Mechanical Governor |
| Packing Weight | 500KG |
| Dimension | 950 mm*1100 mm*1300 mm |
Remarks:
(1) If you need 4BT3.9-C80 engine power pack with Radiator, Air Filter, Muffler, Engine Monitor, Engine Chassis, please further contact our sales.
(2) We can provide the 4BT3.9-C80 complete engine, as well as the 4BT3.9-C80 genuine Cummins engine spare parts.
(3) Cummins B Series Construction Engine Model: 4BT3.9-C80, 4BT3.9-C100, 4BT3.9-C105, 4BTA3.9-C125, 4BTA3.9-C130, 6BT5.9-C115, 6BT5.9-C120, 6BT5.9-C125, 6BT5.9-C130, 6BT5.9-C150, 6BTA5.9-C170, 6BTA5.9-C180, 6BTAA5.9-C205.
| CUMMINS B SERIES CONSTRUCTION ENGINE | |||||
| Engine Model | Rated Power/Speed | Bore*Stroke | Displacement | Aspiration Method | Peak Torque |
| 4BT3.9-C80 | 60kW/2000RPM | 102mm*120mm | 3.9L | Turbocharged | 330N.m @1500r/min |
| 4BT3.9-C100 | 75kW/2400RPM | 102mm*120mm | 3.9L | Turbocharged | 330N.m @1500r/min |
| 4BT3.9-C105 | 77kW/2800RPM | 102mm*120mm | 3.9L | Turbocharged | 330N.m @1500r/min |
| 4BTA3.9-C125 | 93kW/2200RPM | 102mm*120mm | 3.9L | Turbocharged&Aftercooled | 475N.m @1500r/min |
| 4BTA3.9-C130 | 96kW/2200RPM | 102mm*120mm | 3.9L | Turbocharged&Aftercooled | 475N.m @1500r/min |
| 6BT5.9-C115 | 85kW/2000RPM | 102mm*120mm | 5.9L | Turbocharged | 430N.m @1500r/min |
| 6BT5.9-C120 | 87kW/2200RPM | 102mm*120mm | 5.9L | Turbocharged | 430N.m @1500r/min |
| 6BT5.9-C125 | 92kW/2200RPM | 102mm*120mm | 5.9L | Turbocharged | 425N.m @1500r/min |
| 6BT5.9-C130 | 97kW/2200RPM | 102mm*120mm | 5.9L | Turbocharged | 560N.m @1500r/min |
| 6BT5.9-C150 | 112kW/2500RPM | 102mm*120mm | 5.9L | Turbocharged | 565N.m @1500r/min |
| 6BTA5.9-C170 | 125kW/2300RPM | 102mm*120mm | 5.9L | Turbocharged&Aftercooled | 630N.m @1400r/min |
| 6BTA5.9-C180 | 132kW/2500RPM | 102mm*120mm | 5.9L | Turbocharged&Aftercooled | 630N.m @1500r/min |
| 6BTAA5.9-C205 | 151kW/2200RPM | 102mm*120mm | 5.9L | Turbocharged&Aftercooled | 870N.m @1500r/min |
